Introduction

As usual, pull the files from the skeleton.

In today’s lab, we’ll be discussing sorting algorithms used for rearranging elements in a collection to be in a specific order. There are many problems you can more easily solve with a sorted collection, including performing binary search in \(O(\log N)\) time, finding the \(k^{th}\) largest element, and so forth.

There are several kinds of sorting algorithms, each of which is appropriate for different situations. At the highest level, we will distinguish between two types of sorting algorithms:

• Comparison-based sorts, which rely on making pairwise comparisons between elements.
• Counting-based sorts, which group elements based on their individual digits before sorting and combining each group. Counting sorts do not need to compare individual elements to each other.

In this lab and the following lab, we will discuss several comparison-based sorts, including insertion sort, selection sort, heap sort, merge sort and quicksort. Why all the different sorts? Each sort has a different set of advantages and disadvantages: under certain conditions, one sort may be faster than the other, or one sort may take less memory than the other, and so forth. When working with large datasets (or even medium and small datasets), choosing the right sorting algorithm can make a big difference. Along the way, we’ll develop an intuition for how each sort works by exploring examples and writing our own implementations of each sort.

Here is a nice visualizer for some of the sorts we are going to cover in Labs 21 and 22.

Order and Stability

To put elements in order implies that we can enforce an ordering between any two elements. Given any two elements in a list, according to total order, we should be able to decide which of the two elements is larger or smaller than the other.

However, it’s also possible that neither element is necessarily larger or smaller than the other. For instance, if we wish to determine the ordering between two strings, ["sorting", "example"], and we want to order by the length of the string, it’s not clear which one should come first because both strings are of the same length 7.

This brings us to the notion of stability: if a sort is stable, then it will preserve the relative orderings between elements in the list. In the above example then, the resultant array will be ["sorting", "example"] in a stable sort, rather than ["example", "sorting"], as is possible in an unstable sort. Remember that, according to our total order by the length of the strings, the second list is still considered correctly sorted, even though the relative order of equivalent elements is not preserved.

What is the benefit of stable sorting? It allows us to sort values based off multiple attributes. For example, we could stably sort a library catalog by alphabetical order, then by genre, author, etc. Without stable sorting, we are not guaranteed that the relative ordering of the previous sorts would persist, meaning that it is possible that the catalog would only be sorted by our last sort (which is not what we want).

Consider the following example where we sort a list of animals: first by alphabetical order, then by the length of the string.

Original collection:

cow
giraffe
octopus
cheetah
bat
ant

First, sort by alphabetical order:

ant
bat
cheetah
cow
giraffe
octopus

Second, stable sort by length of string:

ant
bat
cow
cheetah
giraffe
octopus

After the two sort calls on the same list, now the collection is sorted by length, and elements with the same length are in alphabetical order with each other. If our sorting algorithm was not stable, then we would potentially lose the alphabetical information we achieved in the first sorting round.

Space Complexity

So far in this class, we’ve mostly talked about time complexity. Similarly to how we can do asymptotic analysis for runtime, we can also analyze how much space (i.e. memory) a given algorithm uses. For sorting algorithms, one common trait we look for is if the algorithm is in-place.

Any sorting algorithm that takes in an input of size N is going to have to work with some amount of memory proportional to N to store the size of the input itself. An in-place algorithm is one that doesn’t use a significant amount of additional memory. In this class, this means that the algorithm must use a constant amount of additional memory (for example, a few variables to keep track of your current index). Another way to think about an in-place algorithm is that we can do the entire algorithm within the original given list, without creating an additional data structure. All the algorithms we discuss today are in-place and do not need to create another data structure.

Note that the definition of in-place can vary. In CS61BL, we say only a constant amount of additional space qualifies as being in-place, but other sources may say using a logarithmic amount is okay.

Insertion Sort

The first comparison-based sort we’ll learn is called an insertion sort. The basic idea for insertion sort can be formally summed up by this pseudocode:

for each element in the collection:
    while the previous element is smaller than the element:
        swap the two elements

You might have intuitively come up with insertion sort when we asked you how to sort cards. This is like when you sort cards by continually putting the next card in the right spot in a group of sorted cards that you’re holding.

Insertion sort is stable. We never swap elements if they are equal so the relative order of equal elements is preserved.

Now that you’ve read the above explanation, we recommend watching this video to solidify your understanding.

Discussion: Runtime

Think about the following questions:

Assume we have an array of \(N\) integers. What would the original array have to look like (before we ran insertion sort) such that insertion sort runs the fastest (i.e. minimizing the number of steps needed)?

Click to reveal answer!

The original list is already sorted.

What is the runtime of running insertion sort on this array?

Click to reveal answer!

\(\Theta(N)\): we go through the entire array and verify that it is indeed sorted.

What type of initial ordering of a list would maximize the number of comparisons and result in the slowest runtime?

Click to reveal answer!

An array that is sorted backwards.

What is the runtime of running insertion sort on the type of array you identified above?

Click to reveal answer!

\(\Theta(N^2)\): we perform 0 swaps for the first element, 1 swap for the second element, 2 swaps for the third element, all the way up to \(N-1\) swaps for the last element. This is an arithmetic sum.

Non-Coding Exercise: InsertionSort

Read the solution sort() in InsertionSort.java and understand the provided helper methods.

Selection Sort

Selection sort on a collection of \(N\) elements can be described by the following pseudocode:

for each element in the collection:
    find the smallest remaining element, E, in the *unsorted* part of the array
    swap E with the first element in the *unsorted* part of the array
    repeat unsorted collection's original length number of times (or repeat until unsorted collection has no more elements)

In selection sort we swap the minimum element in the unsorted collection with the element at the beginning of the unsorted collection. This can rearrange the relative ordering of equal elements, since we are swapping elements that are more than one index apart. Thus, selection sort is unstable.

After reading the above, we recommend watching this video on selection sort!

Disussion: Runtime

Now, let’s determine the asymptotic runtime of selection sort. One may observe that, in the first iteration of the loop, we will look through all \(N\) elements of the array to find the minimum element. On the next iteration, we will look through \(N - 1\) elements to find the minimum. On the next, we’ll look through \(N - 2\) elements, and so on. Thus, the total amount of work will be the \(N + (N - 1) + ... + 1\), no matter what the ordering of elements in the array or linked list prior to sorting.

Hence, we have an \(\Theta(N^2)\) algorithm, equivalent to insertion sort’s worst case. But, notice that selection sort doesn’t have a better case, while insertion sort does.

Non-Coding Exercise: SelectionSort

Read the solution to sort() and understand the helper methods in SelectionSort.java.

Heapsort

Recall that in selection sort, what hurt our runtime was finding the smallest element in the collection, which always took linear time.

Is there a data structure that allows us to find and remove the smallest element quickly? A heap!

We’ll modify our approach to make it better suited for a heap by removing the largest element and placing it at the end of the unsorted array.

How do we transform our original input array into a valid max heap before starting our sorting process? We do so by first performing bottom-up heapification on the original array. See these slides for a walkthrough of bottom-up heapification.

Here’s the pseudocode for heapsort:

construct a max heap using bottom-up heapification
while there are elements remaining in the heap (unsorted part of the collection)
    swap the root of the heap with the last element
    bubble down the new root till the end of the heap

Heapsort is not stable because the heap operations (recall bubbleUp and bubbleDown) can change the relative order of equal elements.

Once again, we recommend watching this video about heapsort to solidify your understanding.

Disussion: Runtime

Now, let’s determine the runtime of heap sort. Removal of the largest element from a heap of \(N\) elements can be done in time proportional to \(\log N\), allowing us to sort our elements in \(O(N \log N)\) time. We can also build a heap in \(O(N \log N)\) time by calling bubble down on every element. This step is only done once, so it doesn’t make our overall runtime worse than \(O(N \log N)\) that we previously established. So, once the heap is created, sorting can be done in \(O(N \log N)\).

Out of scope note:

The tighter runtime for building the heap is actually O(N) but it doesn't affect the overall runtime. The actual calculation for the run time of heap sort is complicated and out of scope for this class. You can take a look at this Stack Overflow answer for more a formal calculation of this runtime.

Exercise: HeapSort

Complete the sort() method and the heapify helper method in HeapSort.java.

The heap in this lab is rooted at index 0 instead of 1 as we’re using it to sort through a pre-existing array. We’ve provided the appropriate getLeftChild and getRightChild methods as part of the skeleton, so you don’t have to worry about this in your implementation.

New Idea: “Divide and Conquer”

The above sorting algorithms work by iterating through each item in the collection one-by-one. With insertion sort and selection sort, both maintain a “sorted section” and an “unsorted section” and gradually sort the entire collection by moving elements over from the unsorted section into the sorted section. Another approach to sorting is by way of divide and conquer. Divide and conquer takes advantage of the fact that empty collections or one-element collections are already sorted. This essentially forms the base case for a recursive procedure! In our recursive procedure, we will break the collection down into smaller pieces, before combining adjacent pieces to form a completely sorted collection.

The idea behind divide and conquer can be broken down into the following 3-step procedure.

1. Split the elements to be sorted into two collections.
2. Sort each collection recursively.
3. Combine the sorted collections.

Compared to selection sort, which involves comparing every element with every other element, divide and conquer can reduce the number of unnecessary comparisons between elements by sorting or enforcing order on sub-ranges of the full collection. The runtime advantage of divide and conquer comes largely from the fact that merging already-sorted sequences is very fast.

Two algorithms that apply this approach are merge sort and quicksort.

Merge Sort

Merge sort works by executing the following procedure until the base case of an empty or one-element collection is reached.

1. Split the collection to be sorted in half.
2. Recursively call merge sort on each half.
3. Merge the sorted half-lists.

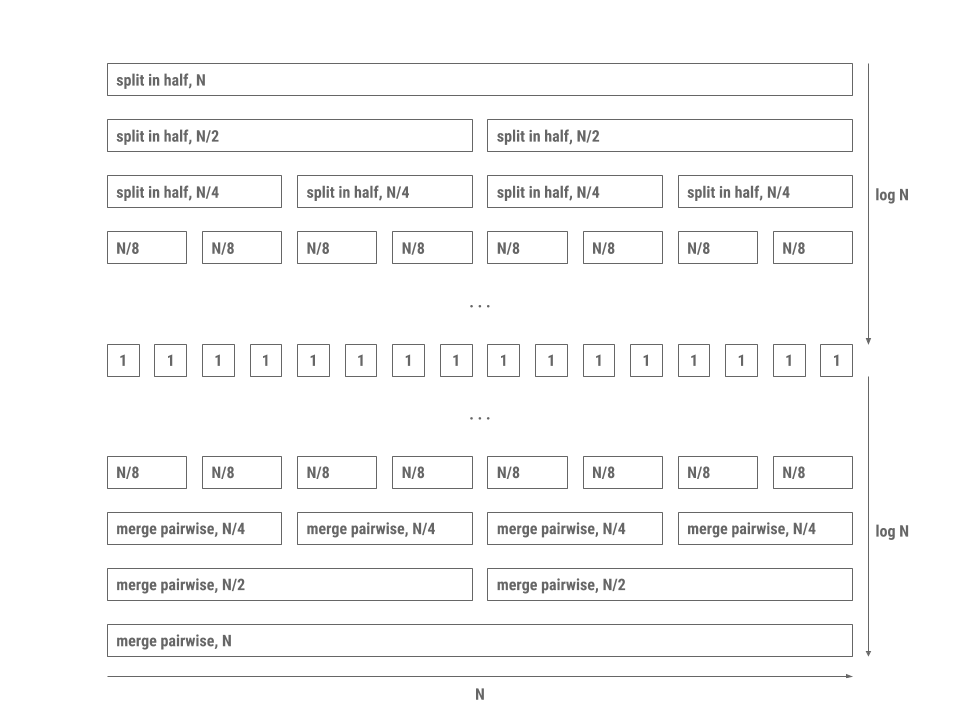

The reason merge sort is fast is because merging two already-sorted lists takes linear time proportional to combined length of the two lists. In addition, splitting the collection in half requires a single pass through the elements. The processing pattern is depicted in the diagram below. (The numbers represent the size of the splitted list.)

• Each level in the diagram is a collection of processes that all together run in linear time. Since there are \(2 \log N\) levels, each doing work proportional to \(N\), the total time is proportional to \(N \log N\).
• To be specific, each level does work proportional to \(N\) because of the merging process, which happens in a zipper-like fashion. Given two sorted lists, merge should continually compare the first elements of both lists and interweave the elements into a singular sorted list.

Merge sort example:

• Given the lists [2, 6, 7] and [1, 4, 5, 8], merge compares the front of both lists (1 and 2). Because 1 < 2, 1 is moved into the next open spot (in this case, the first position) of the overall sorted list. Note that 2 does not enter the overall list, because we now must effectively compare [2, 6, 7] with [4, 5, 8] and repeat the process until there are no more elements that need to be compared and merged.

Merge sort is stable as long as we make sure that, when merging two halves together, we favor equal elements in the left half.

Here’s the video on mergeSort. We recommend watching this before attempting the exercise below!

Exercise: mergeSort

Fill out the sort method and merge helper method in MergeSort.java.

This method should be non-destructive, so the original int[] arr should not be modified.

Quicksort

Another example of dividing and conquering is the quicksort algorithm, which proceeds as follows:

1. Split the collection to be sorted into three collections by partitioning around a pivot (or “divider”). One collection consists of elements smaller than the pivot, the second collection consists of elements equal to the pivot, and the third consists of elements greater than or equal to the pivot.
2. Recursively call quicksort on each collection.
3. Combine the sorted collections by concatenation.

Specifically, this version of quicksort is called “three-way partitioning quicksort” due to the three partitions that the algorithm makes on every call.

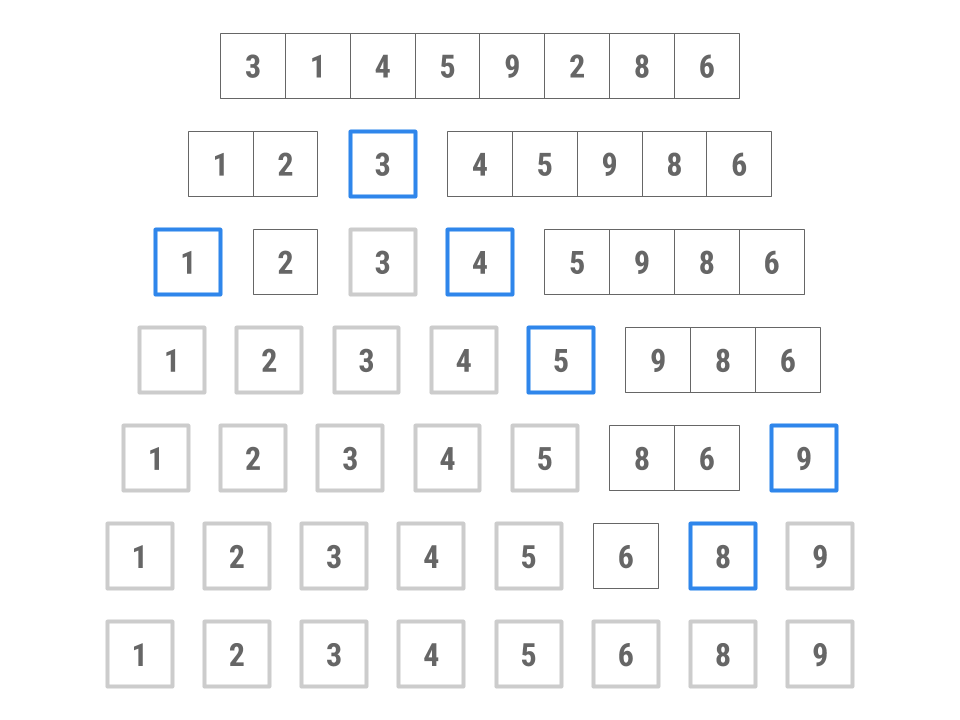

Example of three-way partitioning quicksort with the array [3, 1, 4, 5, 9, 2, 8, 6].

1. Choose 3 as the pivot. (We’ll explore how to choose the pivot shortly.)
2. Put 1 and 2 into the “small” collection, and 4, 5, 9, 8, and 6 into the “large” collection. No elements go in the “equal” collection.
3. Recursively sort the small collection into 1, 2. Recursively sort the large collection into 4, 5, 6, 8, 9. Combine the two collections with the pivot to get 1, 2, 3, 4, 5, 6, 8, 9.

Three-way partioning quicksort is stable, since the ordering of equal elements aren’t affected when creating our “smaller”, “equal”, and “larger” collections.

There is another version of quicksort that uses Hoare partitioning. See these slides for a description of the partitioning scheme, as well as an example walkthrough. Quicksort with Hoare partitioning is in place, but it is not stable, because when we move elements to the left and right of our pivot the relative ordering of equal elements can change.

Before moving on to the next part of the lab, check out this video to solidify your understanding of quicksort. Make sure you’re logged into your Berkeley email to view it. Note that this video was taken from summer 2021’s lecture, so you can stop after the section on quicksort. That is, you can stop at 1:41:00.

Exercise: quicksort

Fill out the quickSort method and partition helper method in QuickSort.java.

This method is destructive, where the original int[] arr should be modified.

Discussion: Quicksort

Discussion 1: Runtime

First, let’s consider the best-case scenario where each partition divides a range optimally in half. Using some of the strategies picked up from the merge sort analysis, we can determine that quicksort’s best case asymptotic runtime behavior is \(O(N \log N)\). Discuss with a partner why this is the case, and any differences between quicksort’s best case runtime and merge sort’s runtime.

However, quicksort is faster in practice and tends to have better constant factors (which aren’t included in the big-O analysis). To see this, let’s examine exactly how quicksort works.

We know concatenation for linked lists can be done in constant time, and for arrays it can be done in linear time. Partitioning can be done in time proportional to the number of elements \(N\). If the partitioning is optimal and splits each range more or less in half, we have a similar logarithmic division of levels downward like in merge sort. On each division, we still do the same linear amount of work as we need to decide whether each element is greater or less than the pivot.

However, once we’ve reached the base case, we don’t need as many steps to reassemble the sorted collection. Remember that with merge sort, while each list of one element is sorted, the entire set of one-element lists is not necessarily in order, which is why there are \(\log N\) steps to merge upwards in merge sort. This isn’t the case with quicksort as each element is in order. Thus, merging in quicksort is simply one level of linear-time concatenation.

Unlike merge sort, quicksort has a worst-case runtime different from its best-case runtime. Suppose we always choose the first element in a range as our pivot. Then, what input array would cause the worst-case runtime for quicksort? What is the runtime of running quicksort on this array?

Click to reveal answer:

A sorted or reverse sorted array. This is because the pivot will always be an extreme value (the largest or smallest unsorted value), so our “smaller” and “larger” arrays will be of size $1$ and $N - 1$. Thus, our recursive call stack will consist of $O(N)$ calls, rather than \(O( \log(N))\) calls, increasing our runtime to $O(N^2)$.

We see that quicksort’s worst case scenario is pretty bad… You might be wondering why we’d even bother with it then! However, though it’s outside the scope of this class for you to prove why (CS170 goes over this proof), we can show that on average, quicksort has \(O(N \log(N))\) runtime! In practice, quicksort ends up being very fast.

Discussion 2: Choosing a Pivot

Given a random collection of integers, what’s the best possible choice of pivot for quicksort that will break the problem down into \(\log N\) levels? Describe an algorithm to find this pivot element. What is its runtime?

Click to reveal answer:

The best pivot would be an item that is the median of our collection, so roughly half the elements will go in the “smaller” collection, and half of the elements will go in the “larger” collection, dividing our problem size by two. The runtime for finding a median, however, is best case $\Theta (N)$, which incurs more cost.

Instead, we usually randomly pick a pivot, which still roughly breaks our problem down logarithmically without incurring the extra runtime of finding the median (the proof is covered in CS170).

Quicksort in Practice

How fast was the pivot-finding algorithm that you came up with? Finding the exact median of our elements may take so much time that it may not help the overall runtime of quicksort at all. It may be worth it to choose an approximate median, if we can do so really quickly. Options include picking a random element, or picking the median of the first, middle, and last elements. These will at least avoid the worst case we discussed above.

In practice, quicksort turns out to be the fastest of the general-purpose sorting algorithms we have covered so far. For example, it tends to have better constant factors than that of merge sort. For this reason, Java uses this algorithm for sorting arrays of primitive types, such as ints or floats. With some tuning, the most likely worst-case scenarios are avoided, and the average case performance is excellent.

Here are some improvements to the quicksort algorithm as implemented in the Java standard library:

• When there are only a few items in a sub-collection (near the base case of the recursion), insertion sort is used instead.
• For larger arrays, more effort is expended on finding a good pivot.
• Various machine-dependent methods are used to optimize the partitioning algorithm and the swap operation.
• Dual pivots

For object types, however, Java uses a hybrid of merge sort and insertion sort called “Timsort” instead of quicksort. Can you come up with an explanation as to why? Hint: Think about stability!

To learn more about the performance difference between Quicksort and Mergesort, watch this video Quicksort versus Mergesort

Timing

So far we’ve measured the speed and efficiency of our algorithms by theoretically performing asymptotic analysis on them. Another (less formal) way of determining the speed of a given program is to test it on a variety of inputs and measure the time it takes for each one. This is called a timing experiment, and we refer to this process as finding the efficiency of a program empirically. In this lab, we will be doing some timing experiments to see how the different sorting classes you implemented in this lab perform.

Open TimingTest.java and run it’s main method. This class will sort random arrays of different sizes using the sorting algorithms you implemented and plot the results.

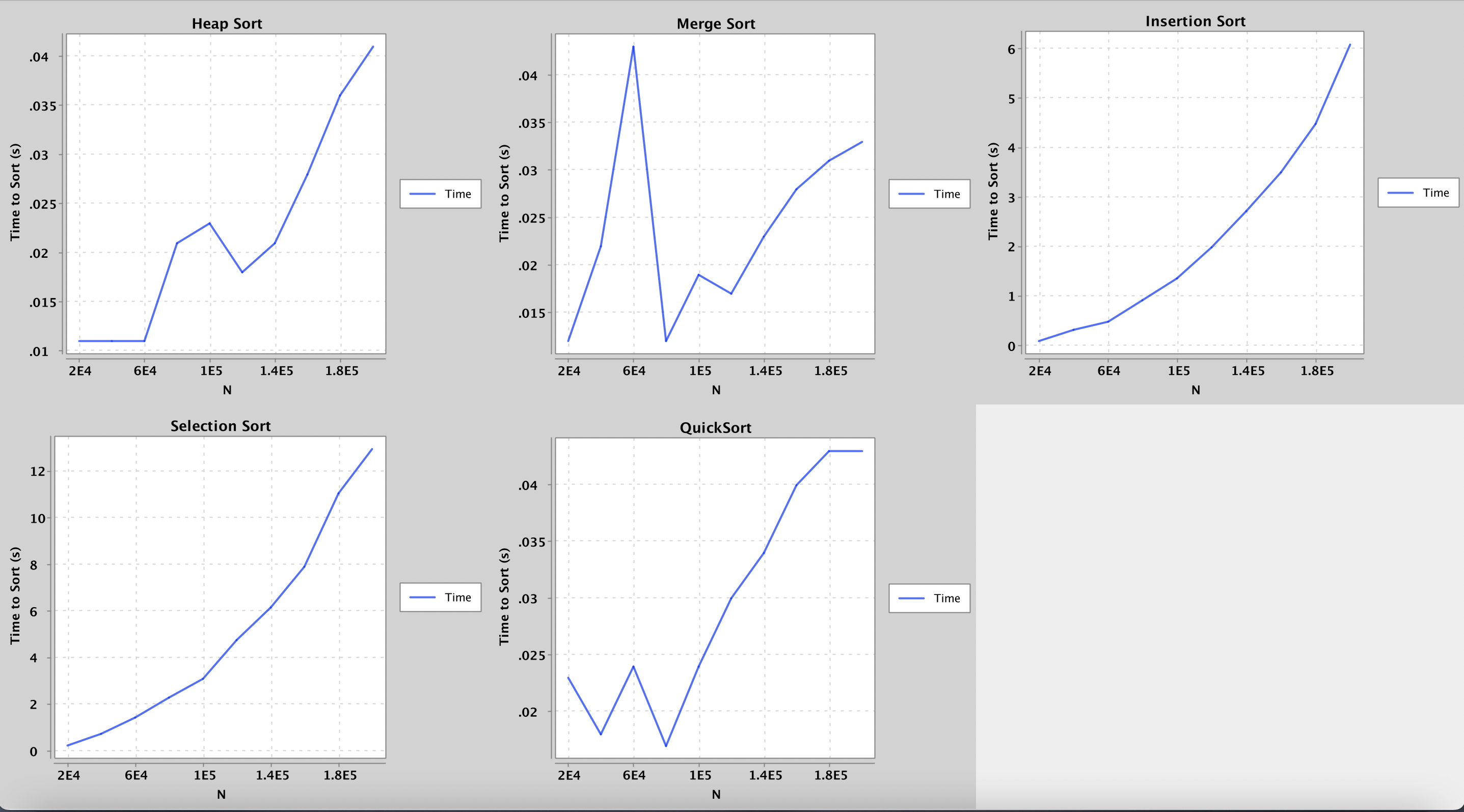

Here’s the result of running the test on one of our computers:

Notice how by the time we reach an array size of 1000000, Selection Sort and Insertion Sort take more than a minute to run while Heap Sort and Merge Sort manages to sort the same array in just over one-tenth of a second!

If you run it multiple times, you will also notice that Quicksort’s runtime varies more than others—you are seeing the different pivot’s runtime on this algorithm’s performance in action!

Please note that the result you see my be different from the picture above. If the tests are taking too long on your computer, try lowering the bounds provided in the class.

Summary

In this lab, we learned about more comparison-based algorithms for sorting collections. Within comparison-based algorithms, we examined two different paradigms for sorting:

1. Simple sorts like insertion sort and selection sort, which demonstrated algorithms that maintained a sorted section and moved unsorted elements into this sorted section one-by-one. With optimization like heapsort or the right conditions (relatively sorted list in the case of insertion sort), these simple sorts can be fast!
2. Divide and conquer sorts like merge sort and quicksort, which take a different approach to sorting: we instead take advantage of the fact that collections of one element are sorted with respect to themselves. Using recursive procedures, we can break larger sorting problems into smaller subsequences that can be sorted individually and quickly recombined to produce a sorting of the original collection.

Here are several online resources for visualizing sorting algorithms. If you’re having trouble understanding these sorts, use these resources as tools to help build intuition about how each sort works.

• VisuAlgo
• Sorting Algorithms Animations
• USF Comparison of Sorting Algorithms
• AlgoRhythmics: sorting demos through folk dance including insertion sort, selection sort, merge sort, and quicksort

To summarize the sorts that we’ve learned, take a look at the following table.

	Best Case Runtime	Worst Case Runtime	Stable	In Place	Notes
Insertion Sort	\(\Theta(N)\)	\(\Theta(N^2)\)	Yes	Yes
Selection Sort	\(\Theta(N^2)\)	\(\Theta(N^2)\)	No	Yes	Can be made stable under certain conditions.
Heap Sort	\(\Theta(N \log N)\)	\(\Theta(N \log N)\)	No	Yes	If all elements are equal then runtime is \(\Theta(N)\). Hard to make stable.
Merge Sort	\(\Theta(N \log N)\)	\(\Theta(N \log N)\)	Yes	Not usually. Typical implementations are not, and making it in-place is terribly complicated.	An optimized sort called “Timsort” is used by Java for arrays of reference types.
Quicksort	\(\Theta(N \log N)\)	\(\Theta(N^2)\)	Depends	Most implementations use log(N) additional space for the recursive stack frames	Stability and runtime depend on partitioning strategy; three-way partition quicksort is stable. If all elements are equal, then the runtime using three-way partition quicksort is \(\Theta(N)\). Used by Java for arrays of primitive types. Fastest in practice.

You may have noticed that there seems to be a lower bound on how fast our sorting algorithms can go. For comparison based sorts, we can prove the best we can do is \(O(N\log(N))\). You can watch a very brief video explanation here at timestamp 11:42. You can also read a more in-depth proof. In the next lab, we’ll learn about counting sorts, which can do even better when we’re able to use them.

Deliverables

To get credit for this lab:

• Complete the following classes:
  • HeapSort.java
  • MergeSort.java
  • QuickSort.java
